Fixed sensor · Remote ID + DJI

AirDetect Pro

AirDetect Pro detects Remote ID drones and DJI drones at up to 6 km. Each alert shows the drone and, often from the very first detection, where the pilot is.

It needs only power, with a SIM card included, and runs continuously with no operator present. It reports to the AirPlate web dashboard, with SMS and email alerts.

Price on request

We put together a quotation for your sites.

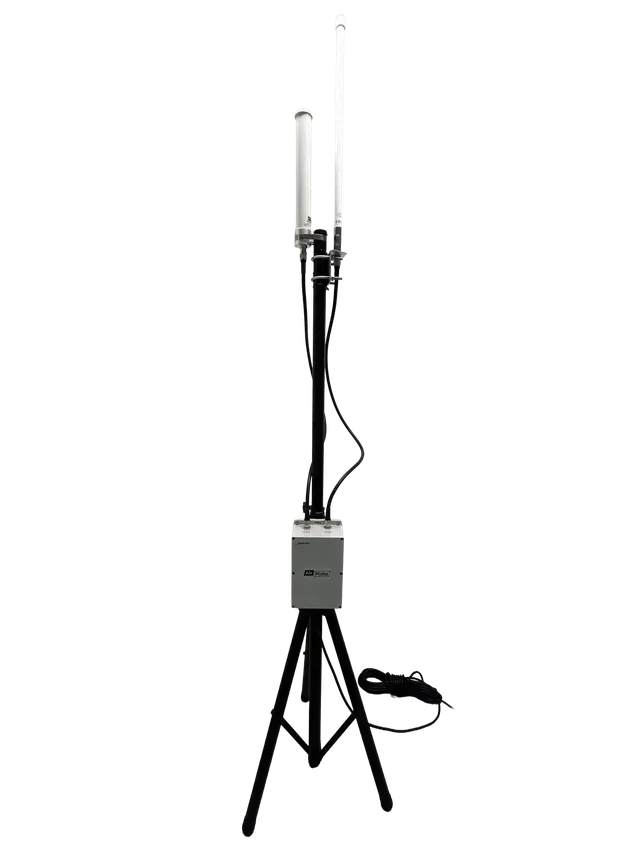

AirDetect Pro on a mast: two rod antennas above the sensor enclosure
At a glance
Detects
Remote ID and DJI drones (DJI DroneID)
Range
Up to 6 km
Power
Power supply only, SIM card included

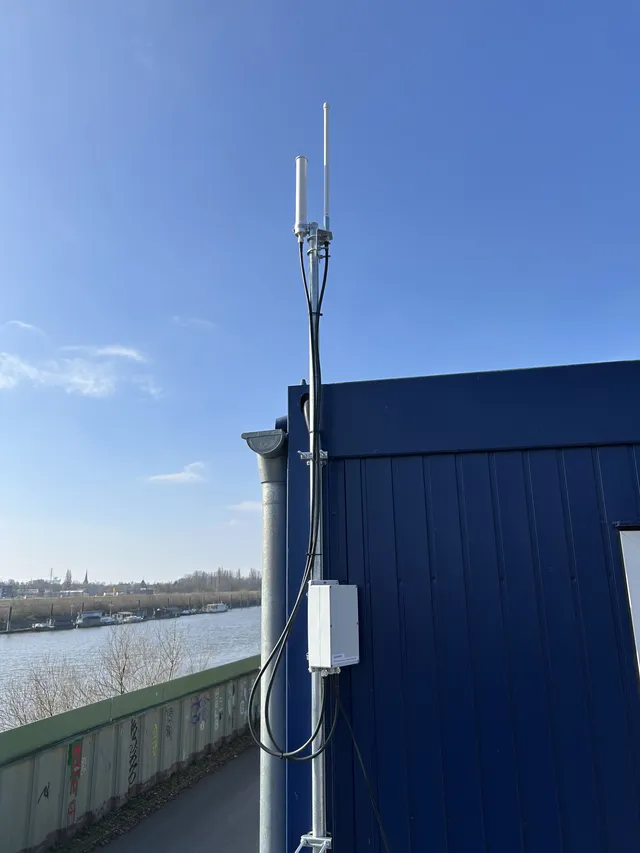

AirDetect Pro on a mast.

Locating the pilot

Not just the drone: where the pilot is.

Each alert shows the drone and, often from the very first detection, where the pilot is.

  • The drone's flight track and the pilot's position on one map
  • An SMS with the pilot's street address and a Google Maps link
  • The drone's model, serial, height and speed
Request a quote
Example: the AirPlate drone detection map with a DJI drone's flight track and the pilot's position, ringed
Example: the SMS alert, which gives the pilot's street address
Example: a drone's track, the pilot's position and the SMS alert. Map © Mapbox, © OpenStreetMap

One Operational Picture

Every scanner, drone detection and alert lands in a single dashboard.

Example: the AirPlate dashboard, with its new unapproved drone alert ringed
Example: the AirPlate heatmap of past drone detections
Example: the dashboard with an alert, and the heatmap of past detections. Map © Mapbox, © OpenStreetMap

From Signal to Decision

  • Instant alerts. SMS or app notification the moment a drone enters your zone.
  • Alarm zones. Draw your own zones; any detection inside one triggers an alert.
  • Heatmaps and logs. Every detection stored, mapped and exportable.

Specifications

Detection
Remote ID · DJI drones (DJI DroneID)
Range
0–6 km, Remote ID and DJI drones · sparse signal at distance
Close range
40+ detections per minute at 0–1 km
Installation
Power only · SIM card included
Alerts
SMS and email · weekly summary email
All specifications
Antennas
2.4 GHz: 6 dB, 25° vertical beam · 5.8 GHz: 10.2 dB, 14° beam
Weight
1.5 kg
Operating temp
−20 °C to +45 °C
Integration
Feeds your security operations dashboard
Data
Stays in your AirPlate account · not shared with third parties

Frequently Asked
Questions

What drones does AirDetect Pro detect?

AirDetect Pro detects Remote ID drones and DJI drones (DJI DroneID) in one unit. Detection is purely passive, so the drone pilot receives no signal that AirDetect Pro has identified their aircraft.

  • It scans Remote ID on 2.4 GHz.
  • It scans DJI DroneID on 5.8 GHz, for DJI drones.
See the specs

What is the detection range of AirDetect Pro?

Up to 6 km, for Remote ID drones and DJI drones alike. If you need more reach, AirDetect Pro Long Range detects Remote ID drones at up to 20 km and DJI drones at up to 8 km, in ideal conditions.

  • At close range, 0 to 1 km, AirDetect Pro records 40 or more detections per minute.
  • At distance, the signal is sparse.
Compare sensors

What does AirDetect Pro need to be installed?

Power only. A SIM card is included, so there is no network to set up.

  • It mounts on a mast or roof and installs in minutes.
  • It runs continuously with no operator present.
  • It weighs 1.5 kg and is rated for −20 °C to +45 °C.

How am I alerted when a drone is detected?

AirPlate sends SMS and email alerts when a drone enters your monitored airspace. Each alert shows the drone and, often from the very first detection, where the pilot is.

  • When the pilot is located, the SMS gives their street address and a Google Maps link.
  • You draw your own alarm zones, and any detection inside one triggers an alert.
  • A weekly email summarises all registered drone activity at your site.
  • Detection events can also feed directly into your security operations dashboard.

Can one dashboard cover several AirDetect Pro installations?

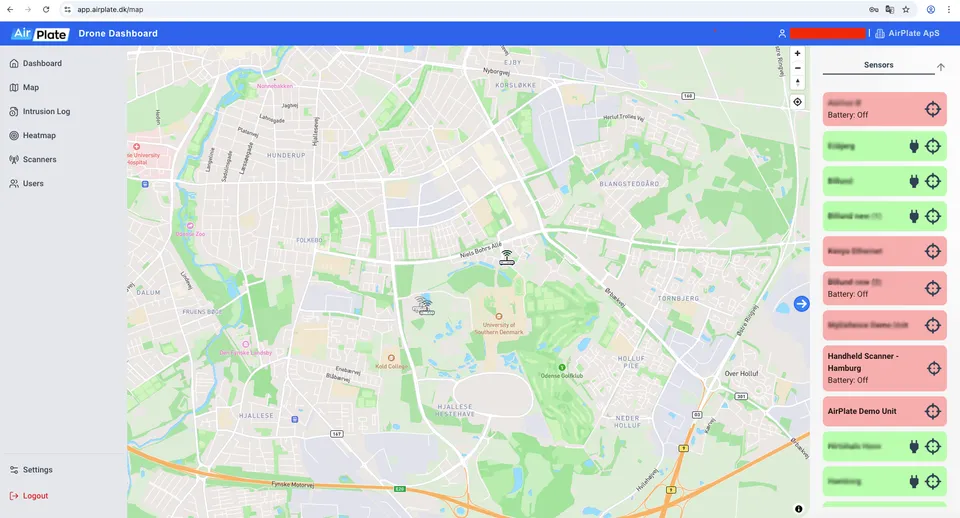

Yes. One dashboard covers all your AirDetect Pro installations, with every site on a single map.

  • Every detection is kept in the AirPlate dashboard.
  • You can review historical drone activity, with heatmaps and logs.
  • You can export reports directly from the dashboard.

Is my detection data shared with anyone?

No. Your detection data stays in your AirPlate account, and nothing is shared with DJI or any other third party.

How much does AirDetect Pro cost?

AirDetect Pro is bought or rented; the price is on request. Tell us about your site and we put together a quotation. You can also email info@airplate.dk.
